1. Chapter 02 - Small Worlds and Large Worlds¶
!pip install torch pyro-ppl proplot black blackcellmagic
Requirement already satisfied: torch in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (1.5.0)
Requirement already satisfied: pyro-ppl in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (1.3.1)
Requirement already satisfied: proplot in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (0.6.4)
Requirement already satisfied: black in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (20.8b1)
Requirement already satisfied: blackcellmagic in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (0.0.2)
Requirement already satisfied: toml>=0.10.1 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from black) (0.10.2)
Requirement already satisfied: appdirs in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from black) (1.4.4)
Requirement already satisfied: typing-extensions>=3.7.4 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from black) (3.7.4.3)
Requirement already satisfied: mypy-extensions>=0.4.3 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from black) (0.4.3)
Requirement already satisfied: typed-ast>=1.4.0 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from black) (1.4.2)
Requirement already satisfied: click>=7.1.2 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from black) (7.1.2)
Requirement already satisfied: pathspec<1,>=0.6 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from black) (0.8.1)
Requirement already satisfied: regex>=2020.1.8 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from black) (2020.11.13)
Requirement already satisfied: ipython in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from blackcellmagic) (7.19.0)
Requirement already satisfied: matplotlib in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from proplot) (3.3.3)
Requirement already satisfied: opt-einsum>=2.3.2 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from pyro-ppl) (3.3.0)
Requirement already satisfied: tqdm>=4.36 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from pyro-ppl) (4.56.0)
Requirement already satisfied: numpy>=1.7 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from pyro-ppl) (1.19.5)
Requirement already satisfied: pyro-api>=0.1.1 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from pyro-ppl) (0.1.2)
Requirement already satisfied: future in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from torch) (0.18.2)
Requirement already satisfied: pexpect>4.3 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from ipython->blackcellmagic) (4.8.0)
Requirement already satisfied: jedi>=0.10 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from ipython->blackcellmagic) (0.18.0)
Requirement already satisfied: setuptools>=18.5 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from ipython->blackcellmagic) (47.1.0)
Requirement already satisfied: prompt-toolkit!=3.0.0,!=3.0.1,<3.1.0,>=2.0.0 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from ipython->blackcellmagic) (3.0.10)
Requirement already satisfied: decorator in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from ipython->blackcellmagic) (4.4.2)
Requirement already satisfied: pygments in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from ipython->blackcellmagic) (2.7.4)
Requirement already satisfied: traitlets>=4.2 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from ipython->blackcellmagic) (5.0.5)
Requirement already satisfied: backcall in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from ipython->blackcellmagic) (0.2.0)
Requirement already satisfied: pickleshare in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from ipython->blackcellmagic) (0.7.5)
Requirement already satisfied: parso<0.9.0,>=0.8.0 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from jedi>=0.10->ipython->blackcellmagic) (0.8.1)
Requirement already satisfied: ptyprocess>=0.5 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from pexpect>4.3->ipython->blackcellmagic) (0.7.0)
Requirement already satisfied: wcwidth in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from prompt-toolkit!=3.0.0,!=3.0.1,<3.1.0,>=2.0.0->ipython->blackcellmagic) (0.2.5)
Requirement already satisfied: ipython-genutils in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from traitlets>=4.2->ipython->blackcellmagic) (0.2.0)
Requirement already satisfied: python-dateutil>=2.1 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from matplotlib->proplot) (2.8.1)
Requirement already satisfied: pillow>=6.2.0 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from matplotlib->proplot) (8.1.0)
Requirement already satisfied: cycler>=0.10 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from matplotlib->proplot) (0.10.0)
Requirement already satisfied: kiwisolver>=1.0.1 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from matplotlib->proplot) (1.3.1)
Requirement already satisfied: pyparsing!=2.0.4,!=2.1.2,!=2.1.6,>=2.0.3 in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from matplotlib->proplot) (2.4.7)
Requirement already satisfied: six in /opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages (from cycler>=0.10->matplotlib->proplot) (1.15.0)
import warnings
import pandas as pd
import proplot as plot
import pyro
import pyro.distributions as dist
import pyro.infer
import pyro.optim
import torch
import torch.distributions.constraints as constraints
import torch.tensor as tensor
from pyro.contrib.autoguide import AutoLaplaceApproximation
warnings.filterwarnings("ignore")
%pylab inline
pyro.set_rng_seed(42)
plt.rcParams["axes.labelweight"] = "bold"
plt.rcParams["font.weight"] = "bold"
/opt/hostedtoolcache/Python/3.7.9/x64/lib/python3.7/site-packages/proplot/config.py:1454: ProPlotWarning: Rebuilding font cache.
Populating the interactive namespace from numpy and matplotlib
1.1. Code 2.1¶
ways = tensor([0, 3, 8, 9, 0], dtype=float)
ways / ways.sum()
tensor([0.0000, 0.1500, 0.4000, 0.4500, 0.0000], dtype=torch.float64)
1.2. Code 2.2¶
dist.Binomial(total_count=9, probs=0.5).log_prob(tensor(6, dtype=float)).exp()
tensor(0.1641, dtype=torch.float64)
1.3. Code 2.3¶
p_grid = torch.linspace(start=0, end=1, steps=20)
prior = tensor([1.0] * 20)
likelihood = dist.Binomial(total_count=9, probs=p_grid).log_prob(tensor(6.0)).exp()
unstd_posterior = likelihood * prior
posterior = unstd_posterior / unstd_posterior.sum()

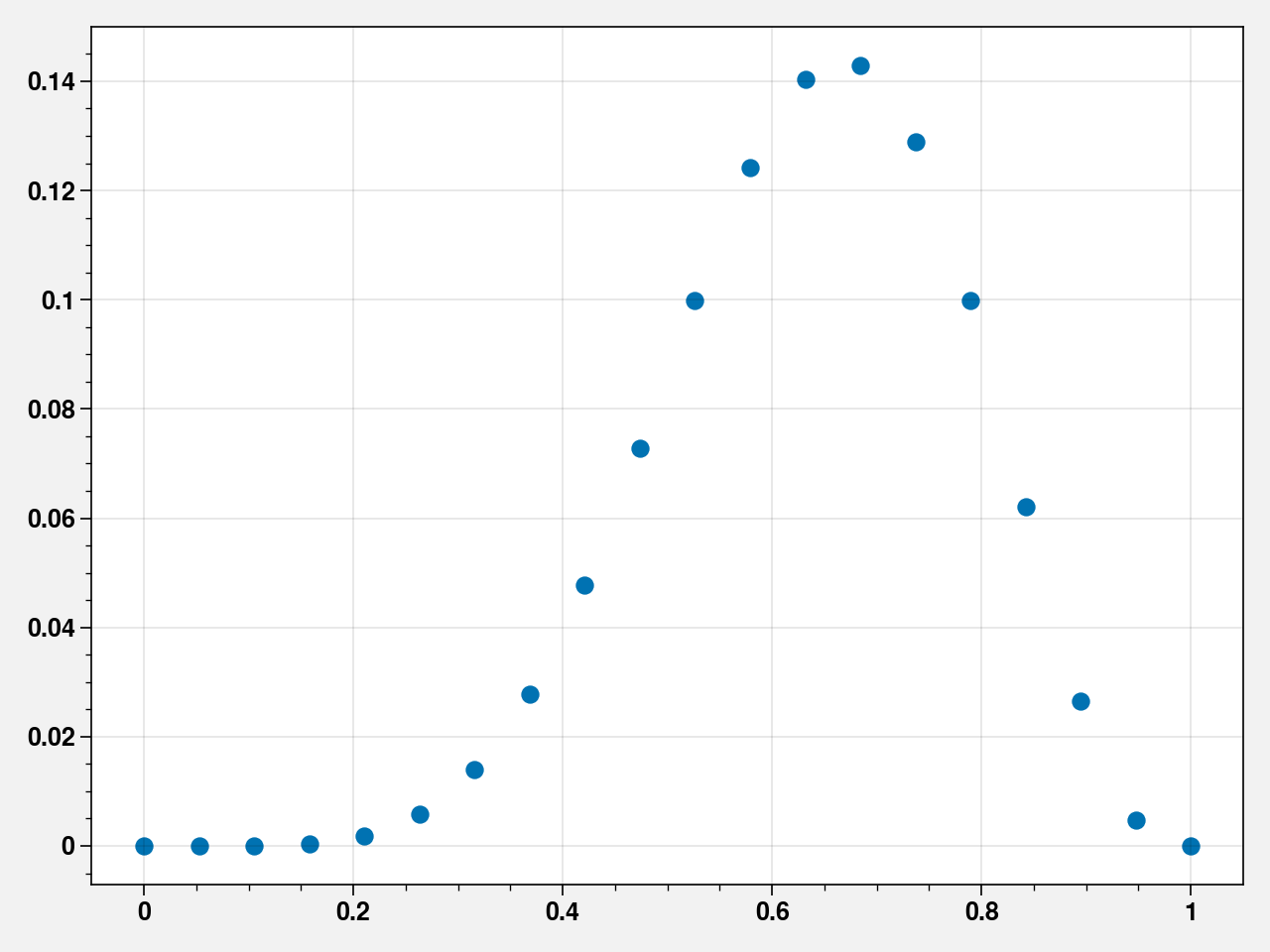

1.4. Figure 2.7¶
fig, ax = plt.subplots()
ax.scatter(p_grid, posterior)
fig.tight_layout()
1.5. Code 2.5¶
prior[prior < 0.5] = 0
prior[prior >= 0.5] = 1
prior = torch.exp(-5 * torch.abs(prior - 0.5))
likelihood = dist.Binomial(total_count=9, probs=p_grid).log_prob(tensor(6.0)).exp()
unstd_posterior = likelihood * prior
posterior = unstd_posterior / unstd_posterior.sum()
prior
tensor([0.0821, 0.0821, 0.0821, 0.0821, 0.0821, 0.0821, 0.0821, 0.0821, 0.0821,
0.0821, 0.0821, 0.0821, 0.0821, 0.0821, 0.0821, 0.0821, 0.0821, 0.0821,
0.0821, 0.0821])
fig, ax = plt.subplots()
ax.scatter(p_grid, posterior)
fig.tight_layout()
1.6. Code 2.6¶
def summary(samples, prob=0.95):
site_stats = {}
for k, v in samples.items():
site_stats[k] = {
"mean": torch.mean(v, 0).data.numpy(),
"std": torch.std(v, 0).data.numpy(),
"{:.1f}%".format(100 * (1 - prob)): v.kthvalue(
int(len(v) * (1 - prob)), dim=0
)[0].data.numpy(),
"{:.1f}%".format(100 * prob): v.kthvalue(int(len(v) * prob), dim=0)[
0
].data.numpy(),
}
return pd.DataFrame(site_stats)
def model(n):
p = pyro.sample("p", dist.Uniform(0, 1.0))
return pyro.sample("w", dist.Binomial(n, p))
def guide(n):
p_param = pyro.param(
"p_param", torch.tensor(0.1), constraint=constraints.unit_interval
)
return pyro.sample("p", dist.Delta(p_param))
conditioned = pyro.condition(model, data={"w": tensor(6.0)})
pyro.clear_param_store()
svi = pyro.infer.SVI(
model=conditioned,
guide=guide,
optim=pyro.optim.SGD({"lr": 0.001, "momentum": 0.1}),
loss=pyro.infer.Trace_ELBO(),
)
n = 9
losses, p_param = [], []
num_steps = 5000
for t in range(num_steps):
losses.append(svi.step(n))

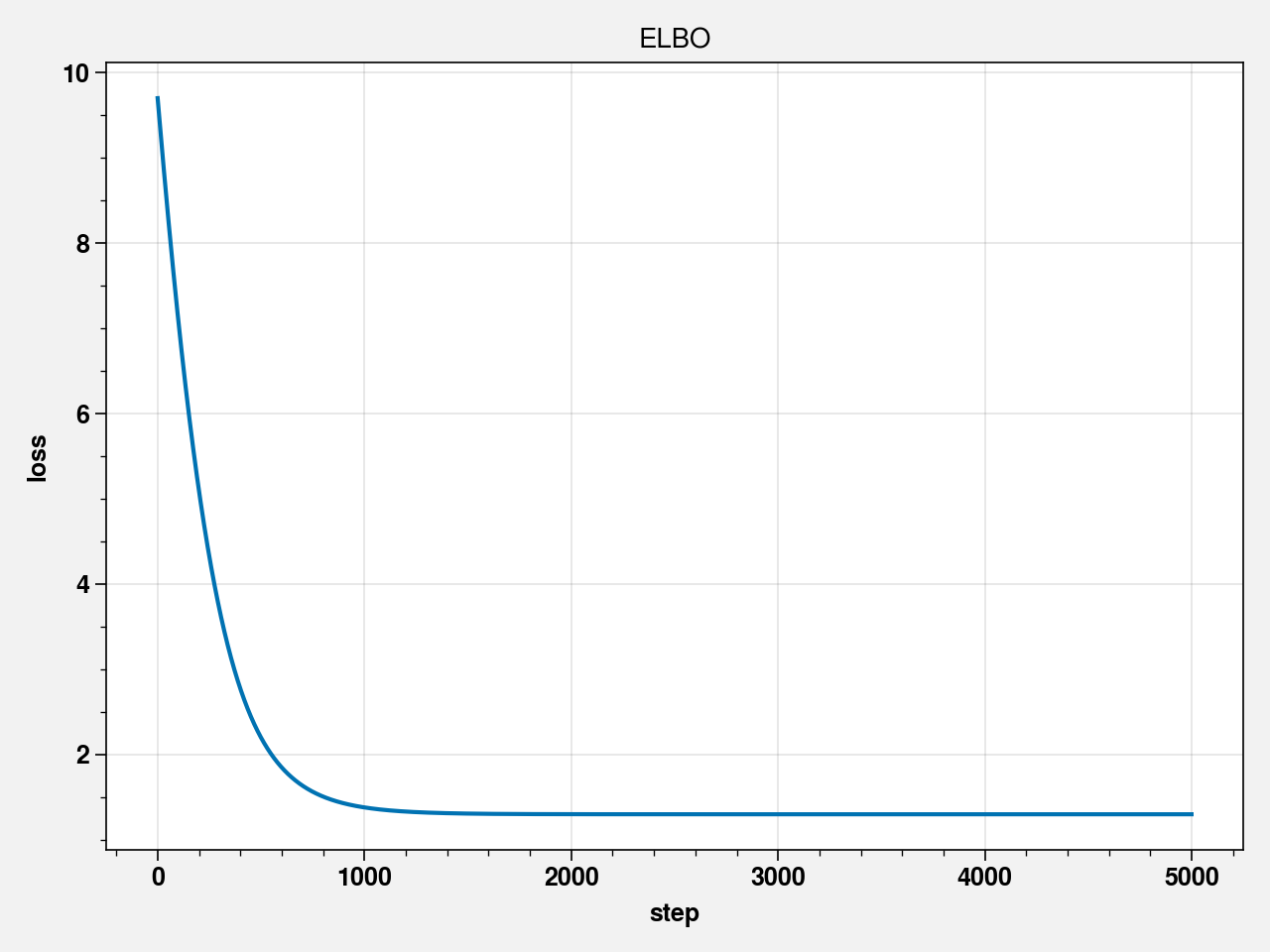

plt.plot(losses)
plt.title("ELBO")
plt.xlabel("step")
plt.ylabel("loss")
plt.tight_layout()
print("p = ", pyro.param("p_param").item())
p = 0.6666584014892578
# Need this for estinamting standard deviation of the posterior
# See: https://forum.pyro.ai/t/standard-deviation-of-the-posterior/1916
n = 9
w = 6.0
pyro.clear_param_store()
conditioned = pyro.condition(model, data={"w": tensor(w)})
guide = pyro.infer.autoguide.AutoLaplaceApproximation(conditioned)
laplace_guide = guide.laplace_approximation(n)
pred = pyro.infer.Predictive(laplace_guide, num_samples=10000)
p_summary = summary(pred.get_samples(), 0.945).loc[:, ["p"]]
p_posterior_mean = tensor(p_summary.loc["mean", "p"])
p_posterior_std = tensor(p_summary.loc["std", "p"])
p_summary
| p | |
|---|---|
| mean | 0.7214124 |
| std | 0.12918343 |
| 5.5% | 0.48164606 |
| 94.5% | 0.8951862 |

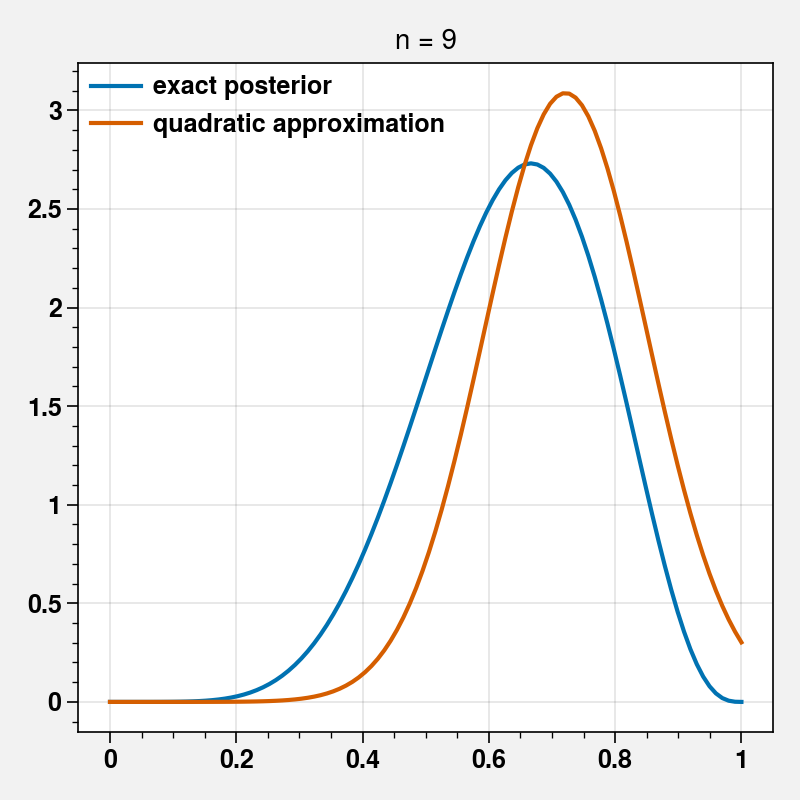

1.7. Code 2.7¶
w = 6
n = 9
p_grid = torch.linspace(0.0, 1.0, 100)
# exact posterior
exact_density = dist.Beta(w + 1, n - w + 1).log_prob(p_grid).exp()
quad_density = dist.Normal(p_posterior_mean, p_posterior_std).log_prob(p_grid).exp()
fig, ax = plt.subplots(figsize=(4, 4))
ax.plot(p_grid, exact_density, label="exact posterior")
ax.plot(p_grid, quad_density, label="quadratic approximation")
ax.legend(loc=2, frameon=False)
ax.set_title("n = 9")
fig.tight_layout()

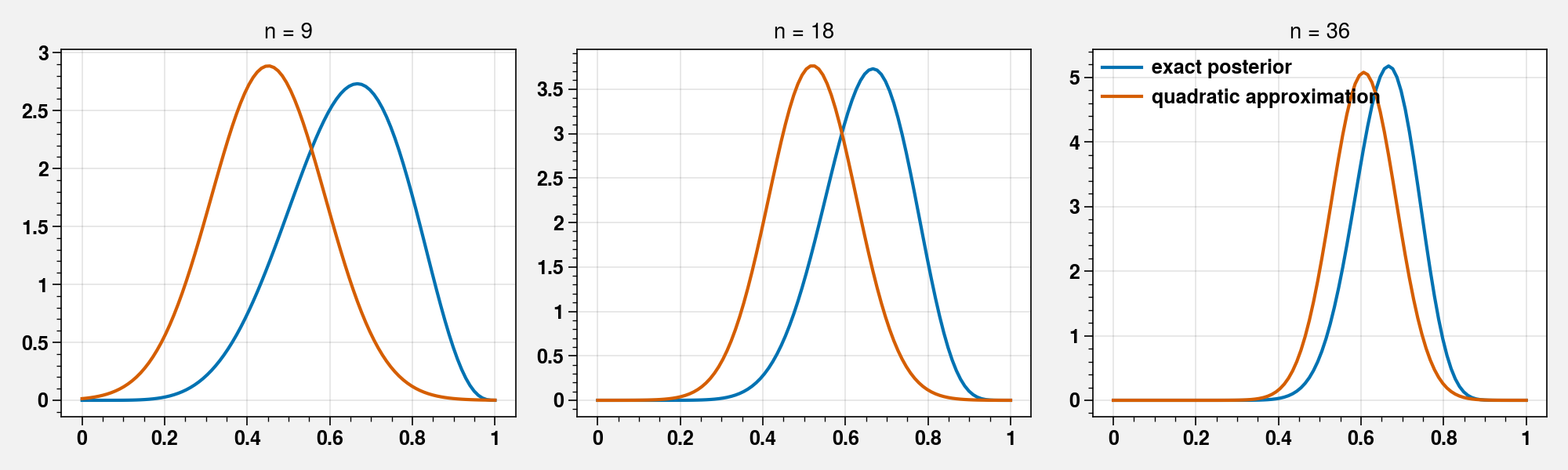

# play with w, n
fig = plt.figure(figsize=(10, 3))
for i, (w, n) in enumerate([(6.0, 9), (12.0, 18), (24.0, 36)]):
ax = plt.subplot(1, 3, i + 1)
ax.set_title("n = {}".format(n))
exact_density = dist.Beta(w + 1, n - w + 1).log_prob(p_grid).exp()
pyro.clear_param_store()
conditioned = pyro.condition(model, data={"w": tensor(w)})
guide = pyro.infer.autoguide.AutoLaplaceApproximation(conditioned)
laplace_guide = guide.laplace_approximation(n)
pred = pyro.infer.Predictive(laplace_guide, num_samples=10000)
p_summary = summary(pred.get_samples(), 0.945).loc[:, ["p"]]
p_posterior_mean = tensor(p_summary.loc["mean", "p"])
p_posterior_std = tensor(p_summary.loc["std", "p"])
quad_density = dist.Normal(p_posterior_mean, p_posterior_std).log_prob(p_grid).exp()
ax.plot(p_grid, exact_density, label="exact posterior")
ax.plot(p_grid, quad_density, label="quadratic approximation")
ax.legend(loc=2, frameon=False)
fig.tight_layout()
# TODO:
